OBU - CAD/CAM Catia

Oxford Brookes University

Description:

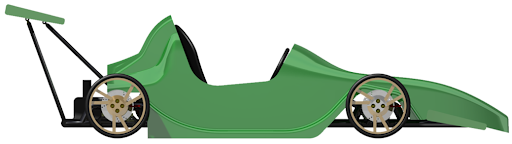

A stylish and aerodynamic body was created for a simple go-kart in Catia V5 CAD software using generative shape design toolbar. A 1/10th scale model of the body was created within the STL rapid prototyping toolbar in Catia, and a rapid prototype model was produced through the Engineering department at Oxford Brookes University. Additionally, core & cavity molds were created for the body through the core & cavity design toolbar. Machining operations for a three-axis mill were created through the Surface Machining toolbar in Catia.

                                                          Core & Cavity Mold Designs
